Learning Objectives
By the end of this chapter, learners will be able to:
1.Understand the principles of glomerular filtration rate (GFR) and its measurement.
2.Interpret common laboratory tests used to assess kidney function.
3.Identify the indications and utility of various imaging modalities in nephrology.
4.Recognize the importance of proteinuria and hematuria in renal disease diagnosis.
5.Apply clinical assessment techniques to evaluate kidney health.
3.1 Introduction to Renal Function Assessment
Assessing renal function is paramount in diagnosing kidney diseases, monitoring their progression, and guiding treatment strategies. This chapter provides a comprehensive overview of the methods used to evaluate the kidneys, from basic laboratory tests to advanced imaging techniques.
3.2 Glomerular Filtration Rate (GFR)
GFR is considered the best overall index of kidney function. It represents the volume of fluid filtered from the glomerular capillaries into Bowman’s capsule per unit time.
Measurement of GFR
Direct measurement of GFR is complex and involves substances that are freely filtered, not reabsorbed or secreted, and not metabolized by the kidney. Inulin clearance is the gold standard but is impractical for routine clinical use.
Estimation of GFR (eGFR)
Clinically, GFR is estimated using equations based on serum creatinine, cystatin C, age, sex, and race.
Commonly Used Equations:
•CKD-EPI (Chronic Kidney Disease Epidemiology Collaboration) Equation: Widely recommended for its accuracy across various GFR ranges.
•MDRD (Modification of Diet in Renal Disease) Study Equation: Historically used, but less accurate at higher GFRs.
•Cockcroft-Gault Equation: Primarily used for drug dosing, as it estimates creatinine clearance rather than GFR and is influenced by weight.
Serum Creatinine:
•A byproduct of muscle metabolism, freely filtered by the glomerulus.
•Influenced by muscle mass, diet, and certain medications.
•Not a perfect marker as it is also secreted by renal tubules.
Cystatin C:
•A protein produced by all nucleated cells, freely filtered by the glomerulus.
•Less influenced by muscle mass, diet, and sex compared to creatinine.
•More sensitive marker for early changes in GFR.
3.3 Urinalysis
Urinalysis is a simple, non-invasive, and highly informative test for assessing kidney and urinary tract health.
Components of Urinalysis:
•Macroscopic Examination: Color, clarity, odor, and specific gravity.
•Dipstick Analysis: pH, protein, glucose, ketones, blood, leukocytes, nitrites, bilirubin, urobilinogen.
•Microscopic Examination: Red blood cells, white blood cells, epithelial cells, casts (hyaline, granular, waxy, red cell, white cell), crystals, bacteria, yeast.
Key Findings:
•Proteinuria: Presence of excess protein in urine, indicating glomerular or tubular damage.
•Albuminuria: Specific for albumin, an early marker of kidney damage, especially in diabetes and hypertension.
•Quantification: Urine albumin-to-creatinine ratio (UACR) or 24-hour urine protein collection.
•Hematuria: Presence of red blood cells in urine.
•Dysmorphic RBCs/RBC Casts: Suggest glomerular origin.
•Isomorphic RBCs: Suggest lower urinary tract bleeding.
•Leukocyturia: Presence of white blood cells, indicating inflammation or infection.
•Casts: Cylindrical structures formed in renal tubules, indicative of specific kidney pathologies.
3.4 Imaging Modalities
Imaging plays a crucial role in evaluating kidney size, structure, and identifying obstructions or other abnormalities.
1. Renal Ultrasound
•First-line imaging: Non-invasive, no radiation, readily available.
•Indications: Kidney size, cortical thickness, hydronephrosis, cysts, stones, masses.
•Limitations: Operator-dependent, limited by bowel gas, cannot assess function.
2. Computed Tomography (CT) Scan
•Detailed anatomical information: With or without contrast.
•Indications: Renal masses, stones, trauma, vascular abnormalities, perirenal collections.
•Limitations: Radiation exposure, contrast-induced nephropathy risk.
3. Magnetic Resonance Imaging (MRI)
•Excellent soft tissue contrast: No radiation, can use gadolinium-based contrast (caution in severe CKD).
•Indications: Complex renal masses, renal artery stenosis, renal vein thrombosis, congenital anomalies.
•Limitations: Cost, availability, contraindications (pacemakers, metallic implants).
4. Renal Scintigraphy (Nuclear Medicine)
•Functional assessment: Uses radioactive tracers.
•Indications: Differential renal function, renal artery stenosis (captopril renogram), urinary obstruction, renal transplant evaluation.
•Limitations: Radiation exposure, limited anatomical detail.
3.5 Renal Biopsy
Renal biopsy is an invasive procedure that provides histological information crucial for diagnosing specific kidney diseases, guiding treatment, and predicting prognosis.
Indications:
•Unexplained acute or chronic kidney injury
•Nephrotic syndrome or nephritic syndrome
•Isolated proteinuria or hematuria (in specific contexts)
•Systemic diseases with renal involvement
•Renal transplant dysfunction
Contraindications:
•Uncontrolled hypertension
•Bleeding diathesis
•Single kidney (relative)
•Small, shrunken kidneys
•Active urinary tract infection
đź“Š SUMMARY
Key Assessment Methods
1.GFR Estimation: Primary indicator of kidney function, calculated using equations (CKD-EPI, MDRD) based on serum creatinine and/or cystatin C.
2.Urinalysis: Provides insights into kidney and urinary tract health through macroscopic, dipstick, and microscopic examination.
3.Proteinuria/Albuminuria: Key markers of kidney damage, quantified by UACR or 24-hour collection.
4.Imaging: Ultrasound (first-line), CT, MRI, and nuclear scans provide structural and functional information.
5.Renal Biopsy: Invasive procedure for definitive diagnosis of specific kidney pathologies.
Important Considerations
•Creatinine limitations: Influenced by muscle mass, diet, and tubular secretion.
•Cystatin C advantages: Less affected by non-renal factors.
•Proteinuria significance: Indicates glomerular or tubular injury.
•Hematuria differentiation: Dysmorphic RBCs/casts suggest glomerular disease.
•Imaging choice: Depends on clinical question and patient factors.
đź’Ž CLINICAL PEARLS
GFR Estimation Pearls
1.Acute vs. Chronic Creatinine: A rapid rise in creatinine suggests AKI; a stable, elevated creatinine suggests CKD.
2.Creatinine Blind Spot: Normal creatinine does not rule out significant kidney disease, especially in elderly or malnourished patients with low muscle mass.
3.eGFR Interpretation: Always consider the clinical context; eGFR is an estimate, not a direct measurement.
Urinalysis Pearls
1.RBC Casts: Pathognomonic for glomerulonephritis, even with minimal hematuria.
2.Waxy Casts: Indicate severe, chronic kidney disease.
3.Sterile Pyuria: Leukocyturia without bacteria, can suggest interstitial nephritis or tuberculosis.
Imaging Pearls
1.Small Kidneys: Bilaterally small, echogenic kidneys on ultrasound typically indicate chronic kidney disease.
2.Hydronephrosis: Suggests urinary tract obstruction; always look for the cause.
3.Contrast Nephropathy: Minimize contrast use in patients with CKD; consider alternative imaging or pre-hydration.
Biopsy Pearls
1.Biopsy Indications: Don’t delay biopsy if a treatable cause of kidney disease is suspected.
2.Bleeding Risk: Carefully assess bleeding risk before biopsy, especially in patients on anticoagulants.
3.Post-Biopsy Monitoring: Close monitoring for bleeding complications is essential.
🖼️ VISUAL MATERIALS

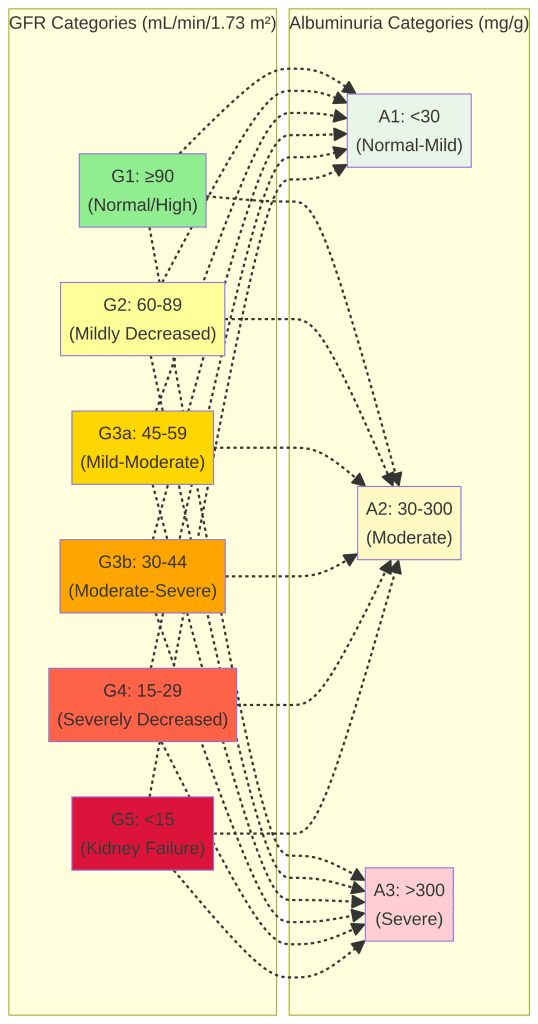

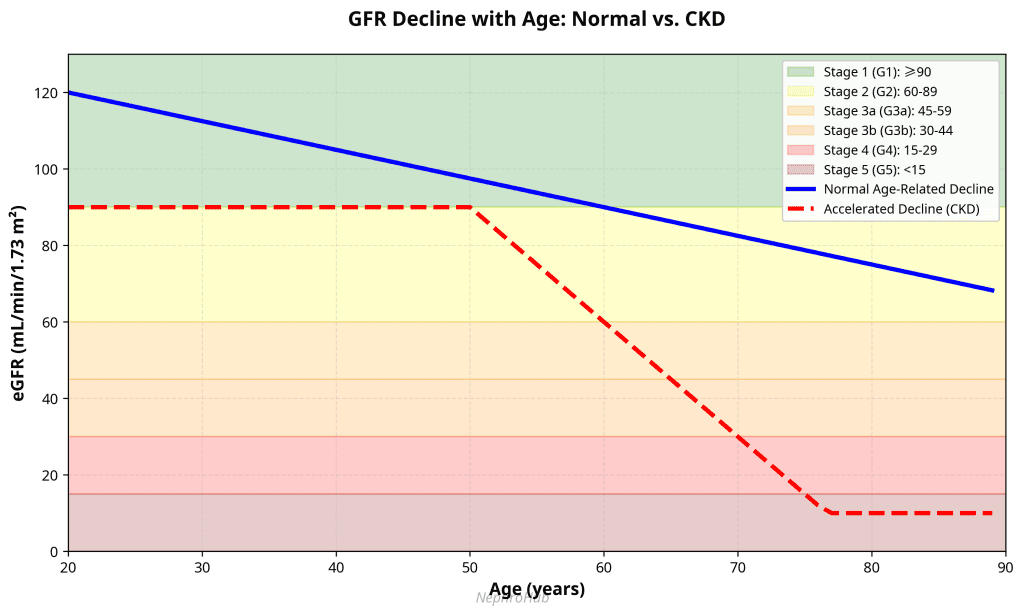

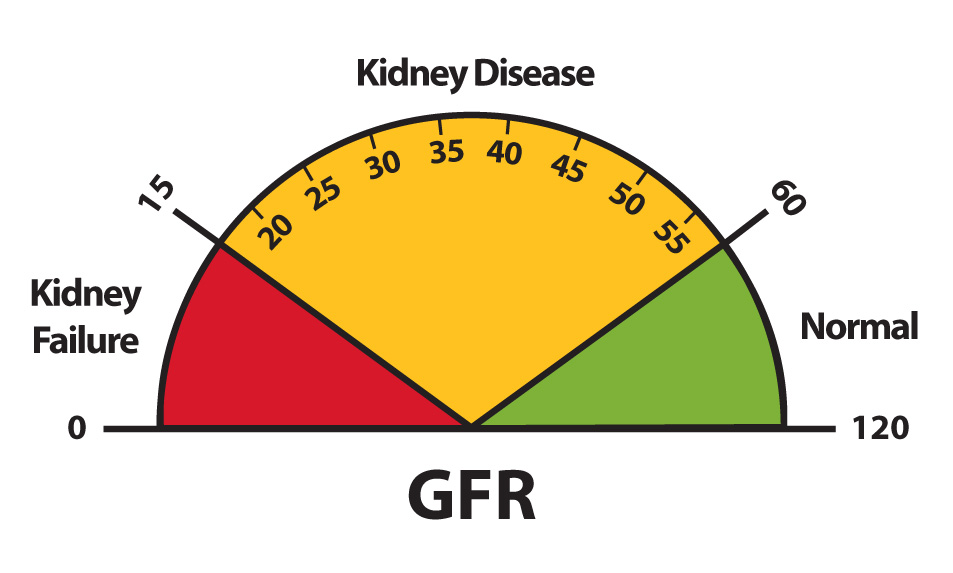

GFR and Kidney Disease Stages
Visual representation of GFR levels and corresponding kidney disease stages, aiding in understanding and communication.
Key Notes
•Creatinine clearance provides a practical and clinically valuable assessment of kidney function. The process involves:
1.Production of creatinine from muscle metabolism and dietary sources
2.Circulation of creatinine in the bloodstream to the kidneys
3.Filtration through the three-layer glomerular filtration barrier
4.Secretion by the proximal tubule (with no reabsorption)
5.Excretion through the collecting system and urinary tract
6.Measurement using blood and urine samples to calculate clearance
Understanding the physiological basis of creatinine handling allows clinicians to interpret kidney function tests accurately and make informed decisions about patient care, medication dosing, and disease management.
•Renal Imaging Modalities Comparison Table: Summarizing indications, advantages, and limitations of ultrasound, CT, MRI, and nuclear scans.
| Modality | Main Indications | Advantages | Limitations |
|---|---|---|---|
| Ultrasound (US) | • Initial evaluation of renal size, echogenicity, obstruction, cysts, and masses.• Assessment of blood flow (Doppler).• Guidance for biopsy or drainage. | • No radiation.• Widely available and inexpensive.• Real-time imaging.• Good for differentiating cystic vs. solid lesions. | • Operator-dependent.• Limited in obese patients or with bowel gas.• Poor visualization of small stones or deep structures. |
| CT Scan (Computed Tomography) | • Detection of stones (CT KUB).• Characterization of masses.• Evaluation of trauma, abscesses, and renal vasculature.• Preoperative planning. | • Excellent spatial resolution.• Detects calcifications and stones.• Rapid and widely available.• CT angiography useful for vessels. | • Ionizing radiation exposure.• Iodinated contrast may cause nephrotoxicity and allergy.• Limited soft tissue contrast compared to MRI. |
| MRI (Magnetic Resonance Imaging) | • Characterization of complex cysts or tumors (esp. indeterminate on CT).• Evaluation of renal vein thrombosis, vascular malformations, or transplant evaluation.• Functional studies (MR urography, perfusion). | • No ionizing radiation.• Superior soft-tissue contrast.• Functional imaging possible.• Safe for patients with iodine allergy. | • Expensive and less available.• Contraindicated with certain metal implants.• Gadolinium may cause nephrogenic systemic fibrosis (NSF) in severe CKD (eGFR <30).• Longer scan time. |
| Nuclear Medicine (Renal Scans)(e.g., DTPA, MAG3, DMSA) | • Functional assessment: GFR estimation, split renal function, obstruction, and scarring.• Renovascular hypertension evaluation.• Transplant evaluation. | • Quantitative assessment of renal function and drainage.• Detects cortical scarring (DMSA).• Useful in children and transplant follow-up. | • Low spatial resolution.• Limited anatomical detail.• Radiation exposure (though low).• Time-consuming. |
🎯 MULTIPLE CHOICE QUESTIONS
Question 1
Which of the following is considered the best overall index of kidney function?
A) Serum creatinine
B) Blood urea nitrogen (BUN)
C) Glomerular filtration rate (GFR)
D) Urine output
Answer: C) Glomerular filtration rate (GFR)
Explanation: GFR is the most accurate measure of overall kidney function, reflecting the kidney’s ability to filter waste products.
Question 2
Which GFR estimation equation is primarily used for drug dosing due to its reliance on weight?
A) CKD-EPI equation
B) MDRD equation
C) Cockcroft-Gault equation
D) Schwartz equation
Answer: C) Cockcroft-Gault equation
Explanation: The Cockcroft-Gault equation estimates creatinine clearance and incorporates patient weight, making it useful for drug dosing adjustments.
Question 3
The presence of dysmorphic red blood cells and red blood cell casts in urinalysis strongly suggests:
A) Lower urinary tract infection
B) Kidney stones
C) Glomerulonephritis
D) Bladder cancer
Answer: C) Glomerulonephritis
Explanation: Dysmorphic RBCs and RBC casts indicate glomerular damage, a hallmark of glomerulonephritis.
Question 4
Which imaging modality is typically the first-line investigation for evaluating kidney size, hydronephrosis, and cysts?
A) Computed Tomography (CT) scan
B) Magnetic Resonance Imaging (MRI)
C) Renal ultrasound
D) Renal scintigraphy
Answer: C) Renal ultrasound
Explanation: Renal ultrasound is non-invasive, readily available, and excellent for assessing kidney structure and detecting hydronephrosis or cysts.
Question 5
Which of the following is a common indication for performing a renal biopsy?
A) Isolated microscopic hematuria in a young, asymptomatic patient
B) Unexplained acute kidney injury
C) Bilateral small, echogenic kidneys on ultrasound
D) Stable, mild proteinuria in a patient with long-standing hypertension
Answer: B) Unexplained acute kidney injury
Explanation: Renal biopsy is often indicated to determine the cause of unexplained acute kidney injury, especially if a treatable cause is suspected.
Question 6
Which of the following statements about serum creatinine is true?
A) It is solely filtered by the glomerulus and not secreted.
B) Its levels are not influenced by muscle mass or diet.
C) It can be a less sensitive marker for early kidney dysfunction compared to cystatin C.
D) A normal serum creatinine always rules out significant kidney disease.
Answer: C) It can be a less sensitive marker for early kidney dysfunction compared to cystatin C. Explanation: Creatinine is influenced by muscle mass and diet, and is also secreted, making cystatin C a more sensitive marker for early changes.
Question 7
What does a urine albumin-to-creatinine ratio (UACR) primarily assess?
A) Overall GFR
B) Tubular reabsorption capacity
C) Glomerular protein leakage
D) Urinary tract infection
Answer: C) Glomerular protein leakage
Explanation: UACR is a specific and sensitive marker for albuminuria, indicating damage to the glomerular filtration barrier.
Question 8
Which type of cast in urinalysis is typically associated with severe, chronic kidney disease?
A) Hyaline casts
B) Granular casts
C) Red blood cell casts
D) Waxy casts
Answer: D) Waxy casts
Explanation: Waxy casts are thought to represent the degeneration of granular casts and are seen in advanced, chronic kidney disease.
Question 9
Which imaging modality is contraindicated in patients with severe CKD due to the risk of nephrogenic systemic fibrosis?
A) Renal ultrasound
B) CT scan with iodinated contrast
C) MRI with gadolinium-based contrast
D) Renal scintigraphy
Answer: C) MRI with gadolinium-based contrast
Explanation: Gadolinium-based contrast agents are associated with nephrogenic systemic fibrosis in patients with severe kidney dysfunction.
Question 10
Sterile pyuria (leukocyturia without bacteria) can be a sign of:
A) Acute pyelonephritis
B) Uncomplicated cystitis
C) Interstitial nephritis
D) Urethritis
Answer: C) Interstitial nephritis
Explanation: Sterile pyuria can be a clue to non-infectious causes of inflammation, such as acute interstitial nephritis.
🎤 POWERPOINT PRESENTATION
[Link to interactive presentation slides covering all renal function assessment concepts with visual aids and animations]
